Making a cheap super-macro lens for a digital camera - this one in
particular fits the olympys 2020-Z camera although you can get by
holding the maco in front of a camera. Just.
The assembly is quite simply a reversed standard 58mm lens off an old
35mm camera with suitable step-down rings and a back-to-back ring (i.e.

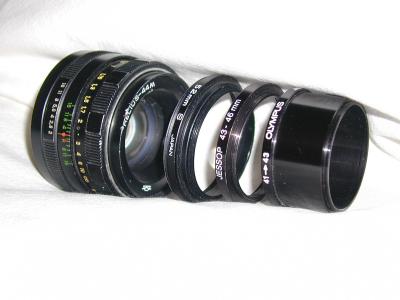

thread at both ends to enable the lens to be reversed. Here are the
individual components:
Standard 58mm lens for a 35mm camera with
52mm filter thread at the end

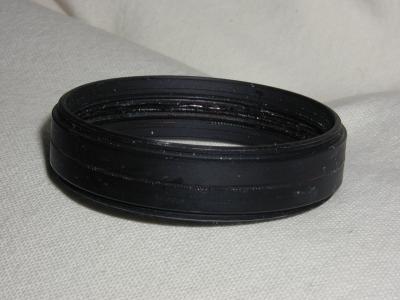

The back-to-back stepdown from 52mm to
46mm (original
home-made
one from
two broken filters glued back-to-back and another step-down)
46mm to 43mm stepdown ring
43mm to 41mm step down and adaptor (from
olympus to fit 43mm filters to a 2020 camera)

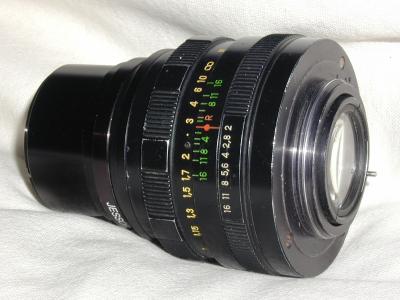

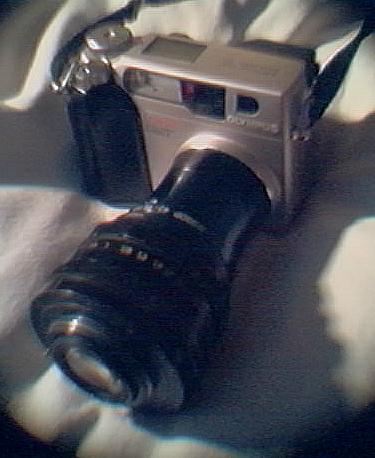

The whole thing together...
A few notes:
It's front heavy. Very.
The subject need to be a few centermeters
from the lens
It's easy for the lens to cast a shadow
onto the subject
Set the 58mm to infinity and wides
aperature
The depth of focus is narrow
Get as much light onto the subject as
possible to highest F-stop on the digital camera to maximise the depth
of focus
Zoom as much as possible to reduce black
borders
Images
Click the images to get the full size version (1600x1200).
